Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Plain Cap - Sheet Floor

Code:
AHS/CS
Brand:
Harmer

Suited to use with 56mm pipes that are made from cast iron, HDPE and PVC, this horizontal shower drain from Harmer has an LM6 aluminium alloy structure. Polyester powder coated for protection, it resists corrosion in both marine and general atmospheric conditions, and it featu... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Dec 30th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Great value and great service"

mark laing
Description Specification Downloads Q&A

Description

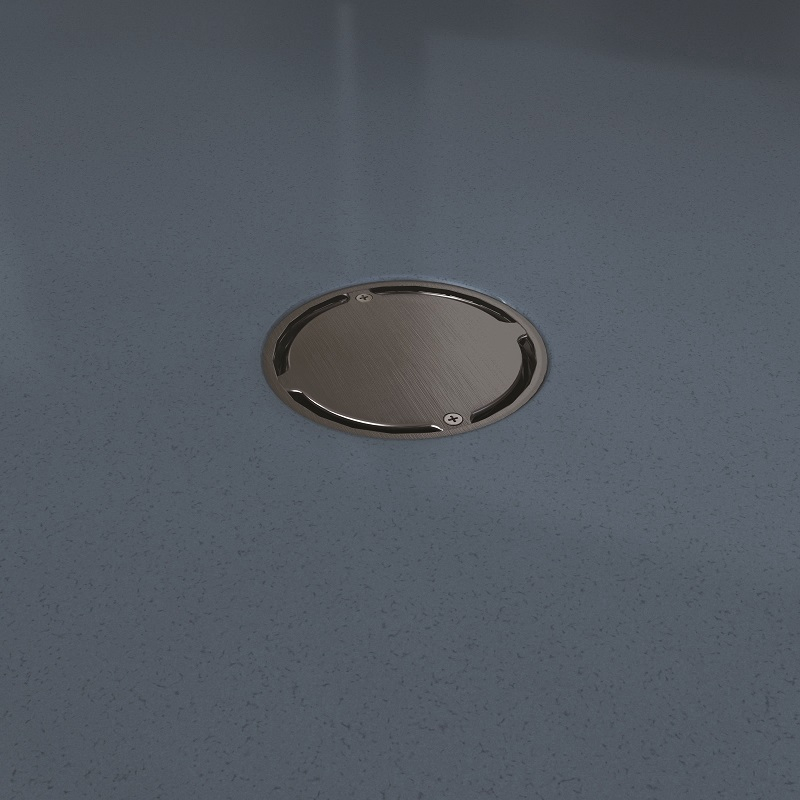

Suited to use with 56mm pipes that are made from cast iron, HDPE and PVC, this horizontal shower drain from Harmer has an LM6 aluminium alloy structure. Polyester powder coated for protection, it resists corrosion in both marine and general atmospheric conditions, and it features a stainless steel clamp with a plain drain cap that is easy to remove when cleaning, replacing and accessing the below 50mm trap.

With up to 0.8 litres a second flow rates, aluminium Harmer horizontal shower drains have an integral fall in the sump that prevents silt from gathering. They are best suited to concrete and timber floors and offer a selection of pleasing caps and grates. Materials for these items are ideal for tiled and sheet flooring, from nickel bronze and stainless steel to aluminium.

Features & Benefits: Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Plain Cap - Sheet Floor

  • Corrosion-resistant LM6 aluminium alloy structure
  • Plain cap is supplied
  • Able to handle up to 300kg vertical loading
  • 0.8 litres per second flow rate
  • Lightweight to aid handling
  • Made with durability in mind
  • K3 Load Class to BS EN 1253
  • Recyclable material
  • Aesthetically and functionally pleasing

Harmer Aluminium Horizontal Drain Contents

  • 1 x plain drain cap
  • Stainless steel screws
  • 1 x stainless steel clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body

Standards & Certification

  • Meets the requirements of BS EN 1253 standard for flow performance, design and loading

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium
Stainless Steel Product Type Shower Drain Weight Class K3 Floor Type Sheet Flooring
Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
