Harmer Aluminium Vertical Drain Nickel Clamp & Star Grate - Sheet Floor

Code:
AVS/SN
Brand:
Harmer

Manufactured from LM6 aluminium alloy with a polyester powder coating for increased protection, this Harmer vertical shower drain is finished with a nickel bronze clamp and star drain grate which can withstand up to 300kg of vertical loading. Offering a flow rate of up to 0.8 l... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Nov 26th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Very easy to deal with."

Graham
Description Specification Downloads Q&A

Description

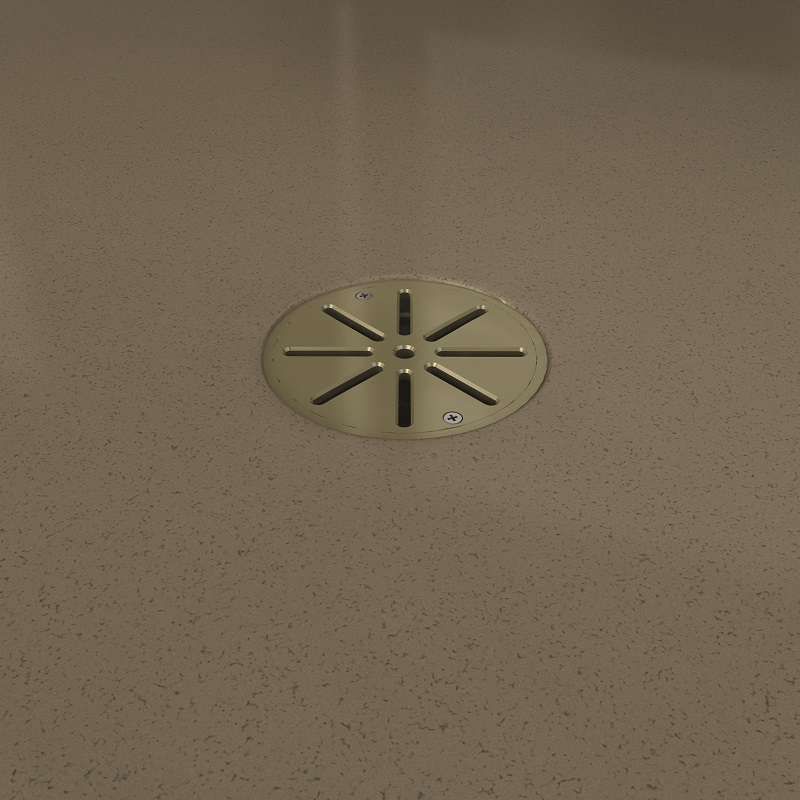

Manufactured from LM6 aluminium alloy with a polyester powder coating for increased protection, this Harmer vertical shower drain is finished with a nickel bronze clamp and star drain grate which can withstand up to 300kg of vertical loading.

Offering a flow rate of up to 0.8 litres per second, this Harmer vertical shower drain is robust and strong yet lightweight. Ideally suited for concrete and timber floor applications, including suspended floors where shallow invert pipes are needed, it is perfect for use on sheet flooring. The drain cap is straightforward to remove so it can be replaced, cleaned or to give access to the removable 50mm foul air trap below. Simply push fitting into 110mm ring seal pipe sockets, this shower drain body is also compatible with 56mm PVC, cast iron and HDPE pipes.

Features & Benefits: Harmer Aluminium Vertical Drain Nickel Clamp & Star Grate - Sheet Floor

  • Highly corrosion resistant
  • Completely recyclable
  • Durable and strong yet lightweight
  • Constructed from LM6 aluminium alloy with a protective polyester powder coating
  • Nickel bronze star drain grate
  • Ideal for sheet flooring
  • K3 Load Class to BS EN 1253
  • Suitable for timber and concrete floor applications
  • 0.8 litres per second flow rate

Meeting the specifications of British and European standard BS EN 1253 for loading, design and flow performance, this Harmer aluminium shower drain provides an attractive yet efficient solution for your shower. Made from 100% recycled aluminium, it can be completely recycled once again at the end of its lifecycle. The LM6 aluminium alloy utilised to produce the drain body can endure marine conditions and general atmospheric environments thanks to its high corrosion resistance.

Harmer Aluminium Vertical Drain Contents

  • 1 x star pattern grate drain cap
  • 1 x nickel bronze clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Loading, flow performance and design: Meets the requirements of British and European standard BS EN 1253

Please note:

  • There is an option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Weight Class K3 Floor Type Sheet Flooring
Type Domestic Application Concrete
Floors
Timber
