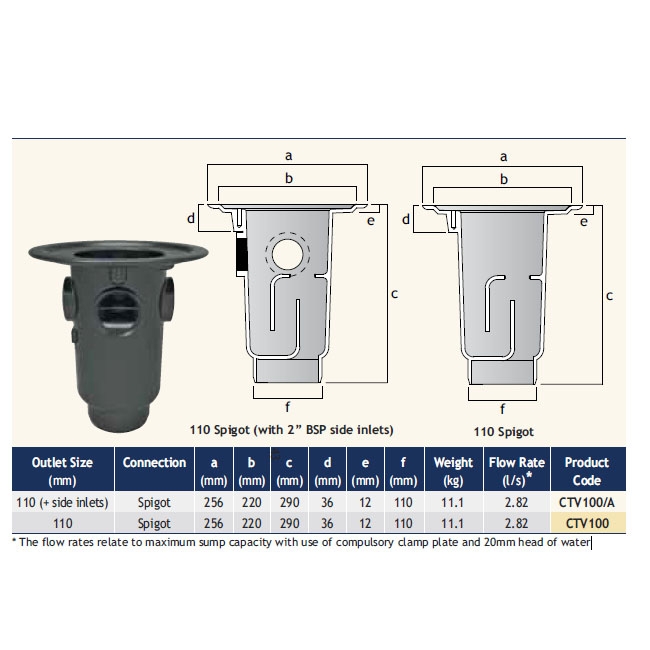

Harmer S Trapped Vetrical Drain Gully with Bezel Grating - 110mm

Code:
CTV100-VP20/SS/110/T
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

Harmer Cast Iron Floor Drains offer an all new range of drain bodies from shallow sump to deep sump with a wide selection of grate & bezel designs with three connection types, available in Satin Stainless finish or Nickel Bronze. Also complemented with a range of cast I... Read More

Create a wishlist

"Fantastic service and very efficie…"

Mike Carpenter

Description

Harmer Cast Iron Floor Drains offer an all new range of drain bodies from shallow sump to deep sump with a wide selection of grate & bezel designs with three connection types, available in Satin Stainless finish or Nickel Bronze. Also complemented with a range of cast Iron floor drain assemblies which are ideally suited for composite or asphaltic floor applications.

Compliances

  •  Grate options available for load classes ratings to BS EN 1253 - K3 (3 kN), L15 (15 kN) and M125 (125 kN)
  •  Harmer Cast Iron gullies are coated internally and externally with a dark grey 2-part epoxy coating. This is in compliance to Class 1 fire classification BS 476: Part 7:1997,
    Surface spread of flame. Smoke and Toxicity test to Part 2, Annex 1 & Annex 2 of fire
    test procedure code, IMO Resolution MSC61(67)



Details

Material Cast Iron Product Type Gully Gully Type Vertical Floor Type Concrete
Purpose External
