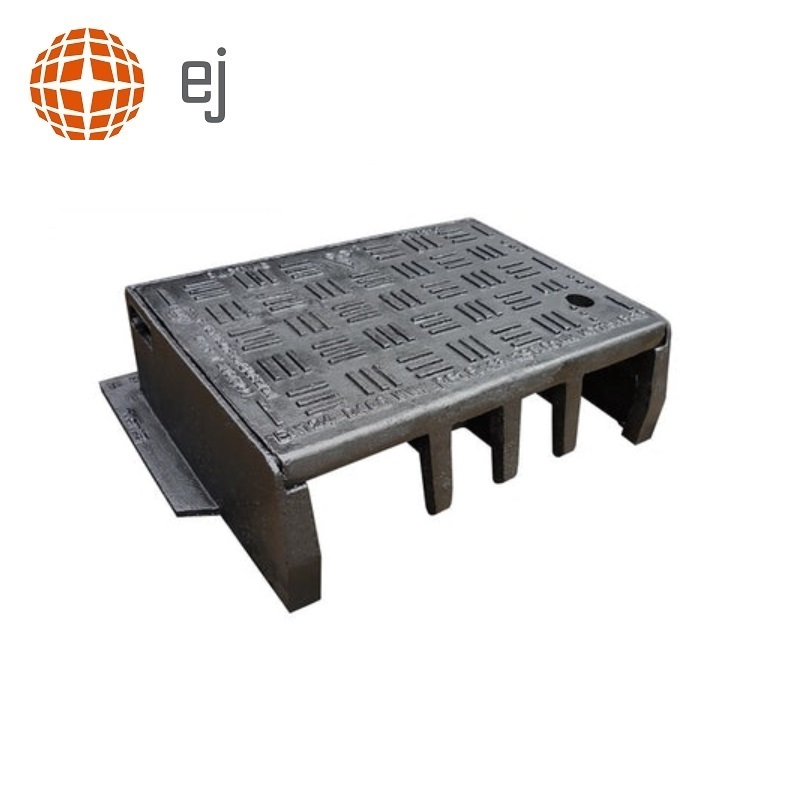

Hinged and Locking Kerb Gully Unit 495 x 355mm 45 Degree Splay Profile

Code:
KD115SP
Brand:

Heavy Duty Ductile Iron, Kerb Gully Units Usage: Group 4 Carriageways & Main Roads for Fast Moving Traffic Manufactured to BS EN124 Class D400 40 Tonne Safe Test Load Kitemarked for third party assurance of quality Standard unit is 150mm deep Works safety tested to +10... Read More

Create a wishlist

"Product was delivered in good time"

Andrew Grant

Description

Heavy Duty Ductile Iron, Kerb Gully Units
Usage: Group 4 Carriageways & Main Roads for Fast Moving Traffic

  • Manufactured to BS EN124 Class D400
  • 40 Tonne Safe Test Load
  • Kitemarked for third party assurance of quality
  • Standard unit is 150mm deep
  • Works safety tested to +10% above EN 124 = 44Tonnes
  • Depth increased to 190mm when used with sub frame DSUB
  • Anti movement technology for improved bonding to bedding material
  • Captive hinged design for easy access and increased security
  • Ductile iron for improved weight to strength ratio
  • Black coated finish

Dimensions

Over Grate: 495 x 355mm
Frame Depth: 150mm

Waterway: 982cm2
Weight: 45kgs

Dimensions

Length 495mm Width 355mm

Details

Material Cast Iron Product Type Gully Grid Cover Shape Rectangular Weight Class D400
