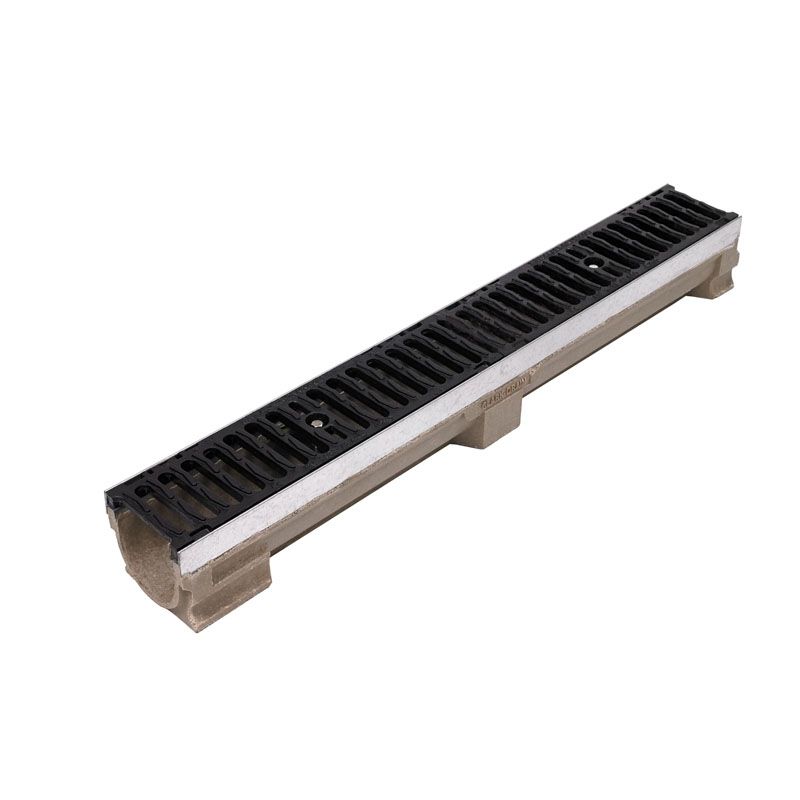

Low Profile Channel Drain Iron Grating 1000mm x 131mm x 80mm - C250

Code:
CD C10-L08G-20
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 131 (W) x 80 (H) Clear Opening: 1000 (L) x 100 (W) x 65 (H)Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates. Finish:... Read More

Create a wishlist

"Fantastic product"

Paul White

Description

External Dimensions: 1000 (L) x 131 (W) x 80 (H)
Clear Opening: 1000 (L) x 100 (W) x 65 (H)
Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates.
Finish: Ductile iron grates are coated with black bitumen.
Locking: 2 locking bars & bolts fitted.
Pre-Sloped Option: Pre-sloped channels (# 001 to 020) incorporate a fall of 0.6% (6mm over 1mtr).

Application

  • Building Entrance
  • Car Parks
  • Schools,Colleges and Universities
  • Pedestrian Precincts
  • Private Housing Estates
  • Shared Driveways
  • Communal Parking Areas
  • Railway Platforms

Dimensions

Length 1m Depth 80mm Width 131mm

Details

Material Concrete Weight Class C250 Grate Material Ductile Iron

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
