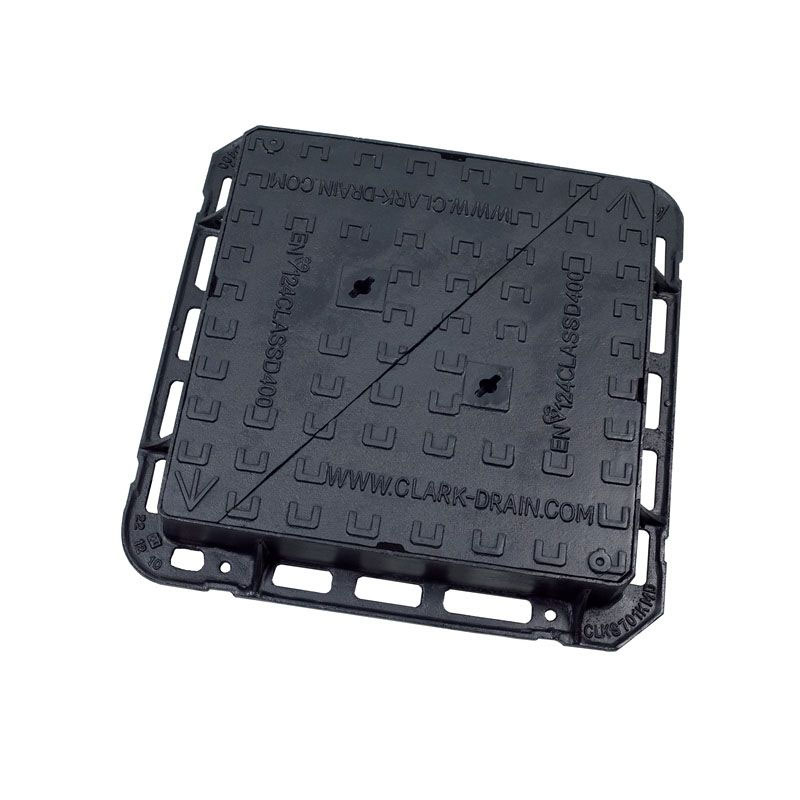

Clark Drain D400 Cast Iron Manhole Cover and Frame 600mm x 600mm x 100mm

Code:
CD 701 KMD
Brand:
Clark Drain

This Clark Drain Cast Iron Manhole Cover and Frame is a dependable addition to your estate or commercial area infrastructure. Engineered from premium Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 15563:2011, this D400 Double Tri-Manhole Cover is built to endure, with a su... Read More

View full product details
View questions about this product
£156.00 Incl. VAT
Was: £175.00 Incl. VAT
You save: £19.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 5-7 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Nov 20th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Competitive price"

adrian kendall
Description Specification Downloads Q&A

Description

This Clark Drain Cast Iron Manhole Cover and Frame is a dependable addition to your estate or commercial area infrastructure. Engineered from premium Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 15563:2011, this D400 Double Tri-Manhole Cover is built to endure, with a substantial load rating of 40 tonnes.

Certified by BSI Kitemark to meet the stringent standards of BS EN124:1994 (copy certificate available on request), this cover boasts a non-rock three-point suspension for added stability. Equipped with integral lifting keyholes compatible with CLKS 552 lifting keys (available separately), it guarantees hassle-free maintenance. This product features a temporary Bitumen-based paint coating to BS 3416, offering reliable protection against wear and tear.

Features & Benefits: Clark Drain D400 Cast Iron Manhole Cover and Frame 600mm x 600mm x 100mm

  • D400 load rating (40 tonnes)
  • Non-rock three-point suspension
  • Integral lifting key holes, compatible with CLKS 552 lifting keys
  • Made from cast iron with a temporary bitumen-based paint coating
  • For use in estates and commercial/industrial areas
  • 3.6N/mm² frame pressure bearing area
  • 45+ Polished Skid-Resistance Value (PSRV)
  • 60kg overall weight and 42kg covers weight (pair)
  • 720mm length x 720mm width x 100mm height external dimensions
  • 600mm length x 600mm width clear opening

Standards & Certification

  • Material Grade: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563: 2011
  • BSI Kitemark: Certified to BS EN124 2015
  • Temporary Bitumen-based paint coating: to BS 3416: 1991

Please note:

  • An optional skid-resistant coating for the top surface, locking versions and "FW" or "SW" badging are also available. Please ask for details.
  • The lifting keys are sold separately.

Dimensions

Length 600mm Depth 100mm Width 600mm

Details

Material Cast Iron Product Type Manhole Cover and Frame Shape Square Weight Class D400
Profile Solid Top Internal Dimensions 600mm x 600mm External Dimensions 720mm x 720mm Use Location High Traffic
Highways
Main Roads
Public Car Parks Load-Bearing Strength 40 Tonnes
