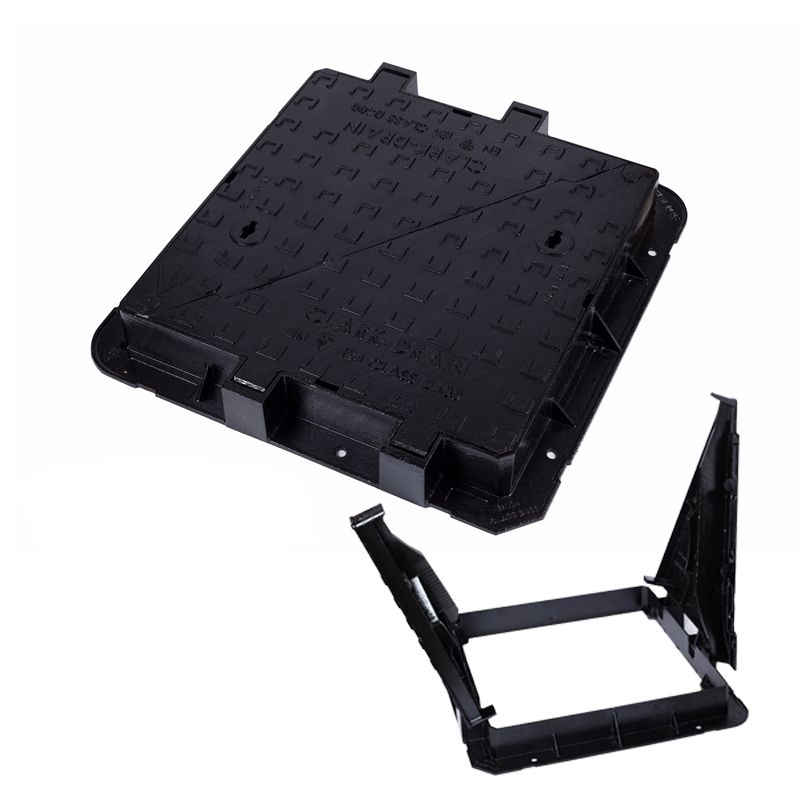

Manhole Hinged Cover and Frame 675L x 675W x 100H Cast Iron - D400

Name: Manhole Hinged Cover and Frame 675L x 675W x 100H Cast Iron - D400
Brand: Clark Drain
SKU: CD 1660H KMDDUP
Price: 129.54 GBP
Availability: Discontinued

Code:

CD 1660H KMDDUP

Brand:

Clark Drain

Free UK Delivery

View full product details

View questions about this product

Create a wishlist

Mrs JOSEPHINE ODONOVAN

Description

Dimensions
Basic Dimensions (mm): Clear-Opening = 675 x 675
Overall Size = 813 x 813
Depth = 100
Weight (kgs): Overall = 80
Covers (each) = 25
Frame Pressure
Bearing Area (N/mm2): 2.1
Polished Skid-Resistance Value
(PSRV): 45+
Load Rating Classification: D400 (40 tonnes)
Features: - BSI Kitemark Certified to BS EN124:1994
(copy certificate available upon request)

Description
Product Group: Ductile Iron Kitemark Manhole Covers
Sub-Category: D400 Hinged Double-Tri Manhole Covers for use in carriageways
Material Grade/s: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011
Temporary Bitumen-based paint coating to BS 3416:1991

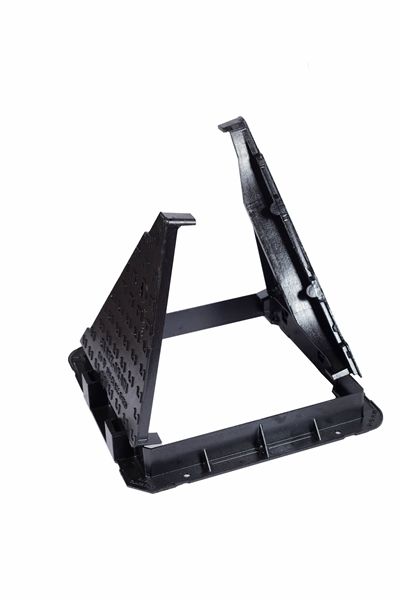

Hinged cover design to reduce manual handling injury risk
Max. opening angle 105⁰, integral hinge safety ‘stop’ at
90⁰ to prevent accidental closing
Non-rock 3 point suspension covers, removable from frame
when opened to 90⁰
Integral lifting key holes (to suit CLKS 552 lifting keys, available separately)
Available as a locking version (ask for details)
Compliant to the design requirements of Highways Agency HA104/09 (low-risk areas)
Available with optional enhanced Skid-Resistant coating on top surface (ask for details)
