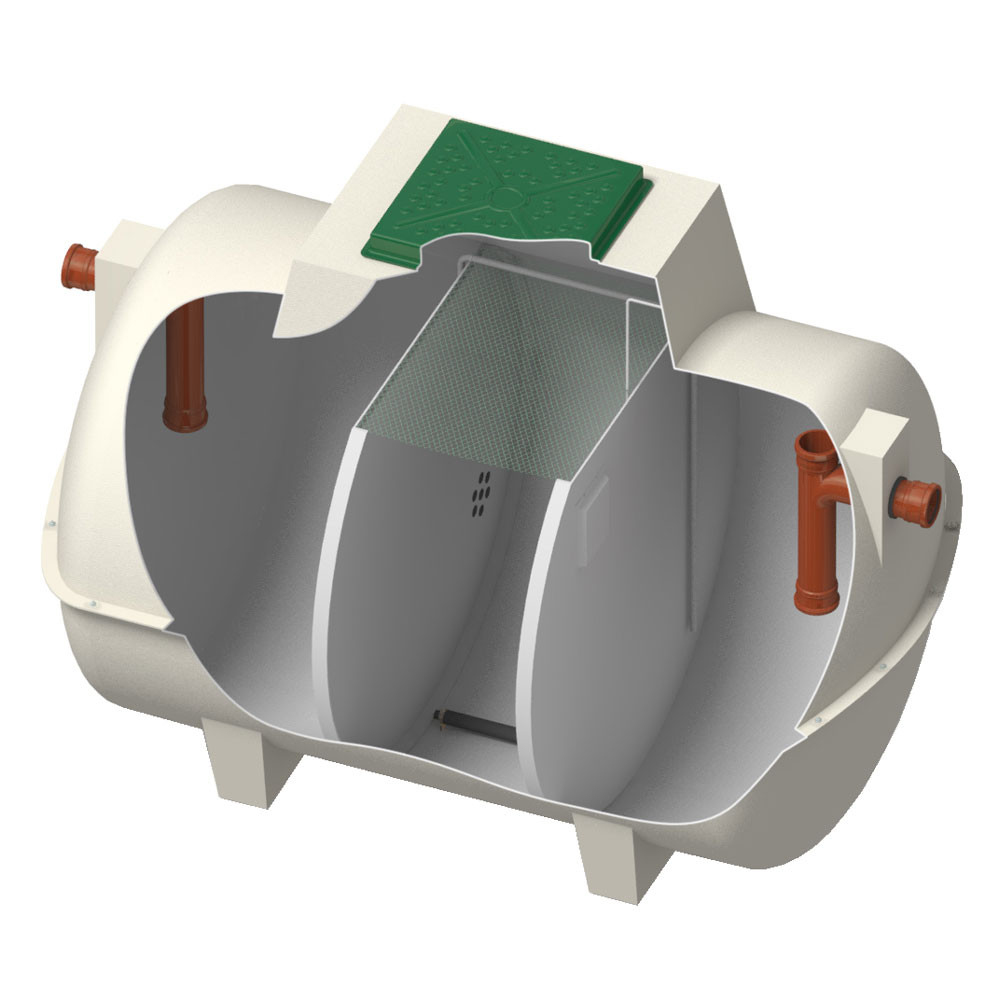

Marsh Ensign Sewage Treatment Plant - Gravity

The full capacity of the 6PE Ensign Gravity is 4500L.

In the Ensign Standard 16PE sewage treatment plant there will be a Charles Austen ET100, this is 80w power consumption.

They have lifting eyes that are suitable for steadying purposes only.

We can offer both retro fit risers and factory fitted risers for the marsh tanks.

This tank can be drained into a rainwater ditch.

We would be unable to answer this as soakaway crates are not allowed to be used. You would need to use rigid perforated pipes for a drainage field and a percolation test would need to be carried out - this is something a grounds worker can advise on and help with.

We would be unable to answer this as soakaway crates are not allowed to be used. You would need to use rigid perforated pipes for a drainage field and a percolation test would need to be carried out - this is something a grounds worker can advise on and help with.

This will come with everything needed for the tank itself to run. You will need the pipework and anything else the site requires.

The amount needed for desludging is 2500L.

This tank is not suitable for domestic use due to the capacity. The minimum size Marsh tank that meets all domestic regulations is the 6 person tank.

Yes, this is the current leadtime.

To empty/clean the tank you would need to hire a waste removal company, they would then empty this through the lid to the tank. This is usually done around once a year depending on use.

Yes, there is a 2 year warrenty on this part.

Once a year.

This would be a suitable replacement.

Normally once a year.

Sewage treatment plants dont hold, they discharge, so provided you dont exceed the population stated then it will just keep discharging the water to the soakaway.

Tanks are measured on capacity so if a family moved into this house you would need to size for maximum occupancy, in this case a 6 person tank would be suitable.

This tank is gravity fed so doesnt not have a pump, it has a blower and compressor aboveground which keeps the media moving and puts oxygen into the tank.

The Marsh Ensign sewage treatment plant - 10 person tank is rewuired to be installed 10m away from a moving watercourse or ditch.

The Marsh Ensign domestic / home sewage treatment plant - 6 person tank has a 4500L capacity.

The Marsh Ensign domestic / home sewage treatment plant - 6 person tank can be upgraded with a larger compressor and add more media depending on the amount they need to upgrade to.

This costs of running a Marsh Ensign sewage treatment plant domestic - 12 person tank is approximately £98 per year.

Marsh can offer an above ground option, however this would be priced on application - as above ground tanks are reinforced. This particular tank is for underground use.

The Marsh Ensign sewage treatment plant - 10 person tank is 40 - 45 decibels. This is similar to that of a pump in a fish tank.

The Marsh Ensign sewage treatment plant - 8 person tank has been tested to EN12566:3-2005. This is highest testing standard for European testing. The high test results mean the Ensign can discharge direct to a ditch, watercourse or percolation bed.

Yes, the Marsh Ensign domestic / home sewage treatment plant - 6 person tank needs to be on a concrete base. For the full installation guide, please visit: https://www.drainagesuperstore.co.uk/user/u/pimp/uploads/attachments/3/marsh-sewage-treatment-plant-installation-guie.pdf

The Marsh Ensign domestic / home sewage treatment plant - 6 person tank comes with lifting eyes to make unloading and installation faster and safer. We designed the Ensign plant to self-level on the base and with our unique pipe connections ensure the installation is undertaken efficiently and correctly. The six-person Ensign Sewage plant is extremely strong and is only 1.95m in depth with an inlet invert of 500mm, this design reduces both the time and cost of installation, in normal ground conditions the unit only requires a pea-shingle surround. For guidance, ideally, the Ensign plant should be 7m from a dwelling or 10m from a stream.

You can fit a Marsh Ensign domestic / home plant. The plant can be adapted too, so if required, it can be installed on a vehicle driveway. Please contact us by phone or email for more information.

The Ensign sewage treatment plant is one of the most economic, efficient and environmentally friendly systems on the market. As long as the plant is installed correctly, the system is odourless and operates virtually silent. It is backed with a 25-year structural guarantee. The ENsign sewage treatment plants are extremely energy efficient and normally only requires 30 minutes of annual maintenance. The six-person ENsign sewage treatment plants are extremely strong and are only 1.95m in depth with an inlet invert of 500mm, this design reduces both the time and cost of installation, in normal ground conditions the unit only requires a pea-shingle surround.

The Ensign and Ensign: Ultra range of sewage treatment plants has been tested to EN12566:3-2005 – this is the highest testing standard for European testing. The successful test results mean the Ensign range can discharge directly to a ditch, watercourse or percolation bed.
