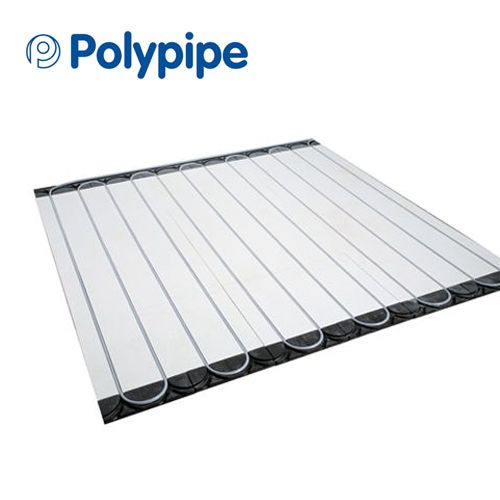

Polypipe Underfloor Heating Overlay Lite Room Pack with Zonal Regulation Unit - 30m² OverlayTM is a unique low profile floor heating system ideal for both renovation and new build projects Installed over the existing floor and only 18mm in depth, OverlayTM al... Read More
Polypipe Underfloor Heating Overlay Lite Room Pack with Zonal Regulation Unit - 30m²
Installed over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufDetails
Heating Area - 30m²
Control Type - ZRU Control
Maximum Heat Output - approx. 100W/m²
Recommended Flow Temperature - 45-50°C
Maximum Circuit Length - 80m
Maximum Coverage Per Circuit - 12m²
Description
Polypipe Overlay is a unique low profile floor heating system ideal for both renovation and new build projects

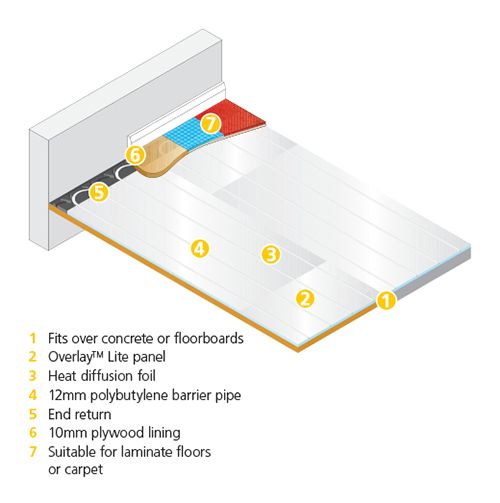

Overlay Lite is a high compressive strength, lightweight insulated panel used for lightweight floor coverings, e.g. laminate, engineered wood and carpet. Due to its ease of handling and cutting it is also more suitable for larger areas and multiple room installations.
Installed over the existing floor and only 18mm in depth, Overlay allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level. The Overlay system is available in 2 panel types to allow for installation to all build types and floor coverings.
Overlay systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
Guarantee
Polypipe underfloor heating products, excluding manifolds and control products, are covered by a 50 year Guarantee, which protects against defects in materials or manufacture of the heating system from date of purchase.
This guarantee only applies if the system is installed in accordance with the manufacturer’s recommendations, and is used in a normal domestic operation.
Pack Contents
2 x Overlay Lite Panel Pack of 20 (PB08020)
6 x Overlay End Returns Pack of 10 (PB08573)
3 x Overlay Pipe 12mm x 80m (UFH8012B)
2 x Self Adhesive Aluminium Tape (ATP)
3 x Adaptors 12 x 15mm Pack of 2 (PB181512)
4 x 15mm Polyplumb Tees (PB215)
4 x 15mm Spigot Elbows (PB1015)
1 x ZRU Zonal Regulation Unit (PB970018)
