Underground Duct and Cable Chamber Cover 600L x 600W - M.O.D Approved

Name: Underground Duct and Cable Chamber Cover 600L x 600W - M.O.D Approved
Brand: Clark Drain
SKU: CD 1424 SEC
Availability: LimitedAvailability

Code:

CD 1424 SEC

Brand:

Clark Drain

This item is out of stock and not available to purchase.

View alternative products

Underground Duct and Cable Chamber Cover 600L x 600W - M. O. D Approved External Dimensions: 650 (L) x 650 (W) x 88 (H) Clear Opening: 600 (L) x 600 (W) x 40 (H) Application Cover & Frame Solid top with Durbar ... Read More

View full product details

View questions about this product

Create a wishlist

Customer

Description

Underground Duct and Cable Chamber Cover 600L x 600W - M.O.D Approved

External Dimensions:     650 (L) x 650 (W) x 88 (H)
Clear Opening:     600 (L) x 600 (W) x 40 (H)

Application

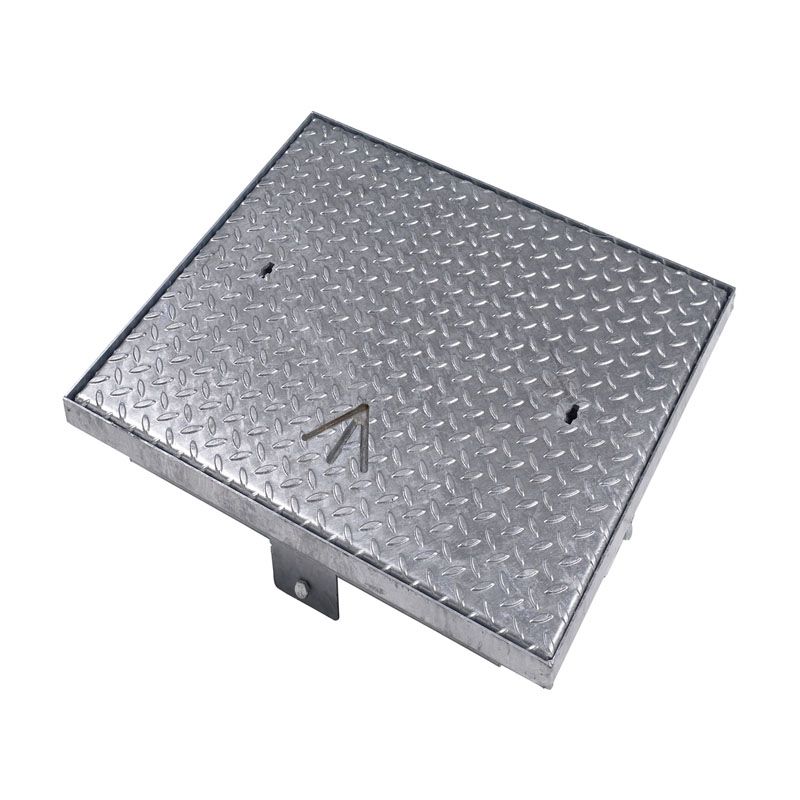

Cover & Frame     Solid top with Durbar tread. Galvanised steel.

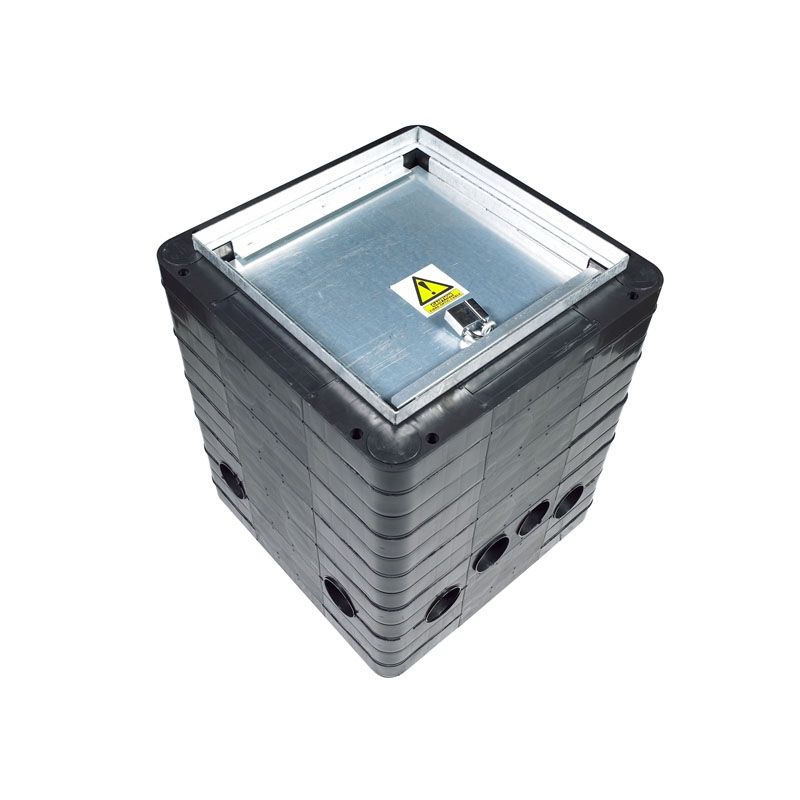

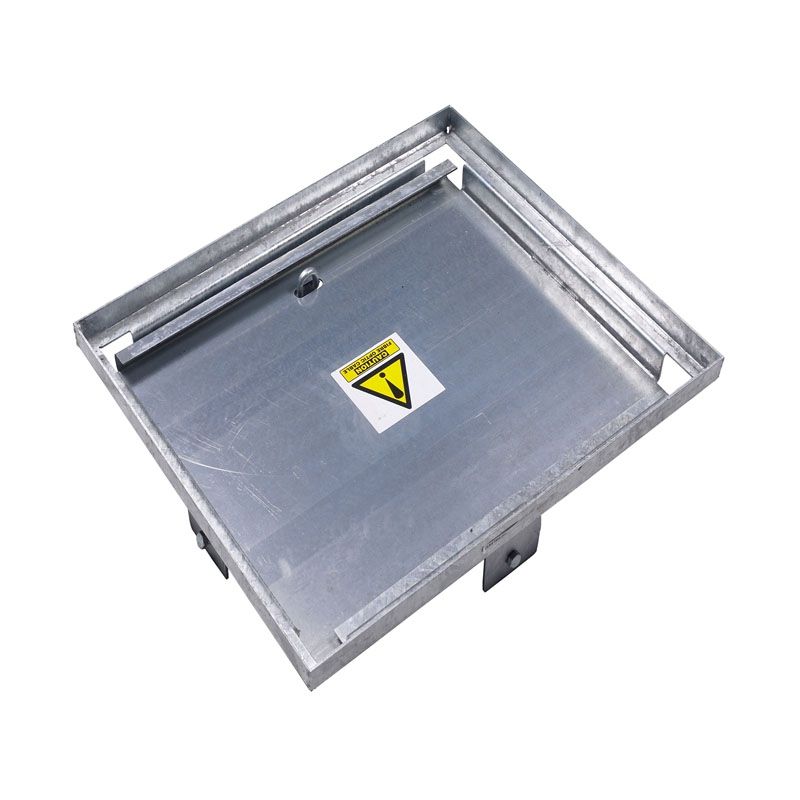

Locking     Galvanised steel inner security plate with hardened hasp staple.
Badged     M.O.D. Pheon
Suitable for:-     Securing underground duct and cable installations in grassed areas.

Description

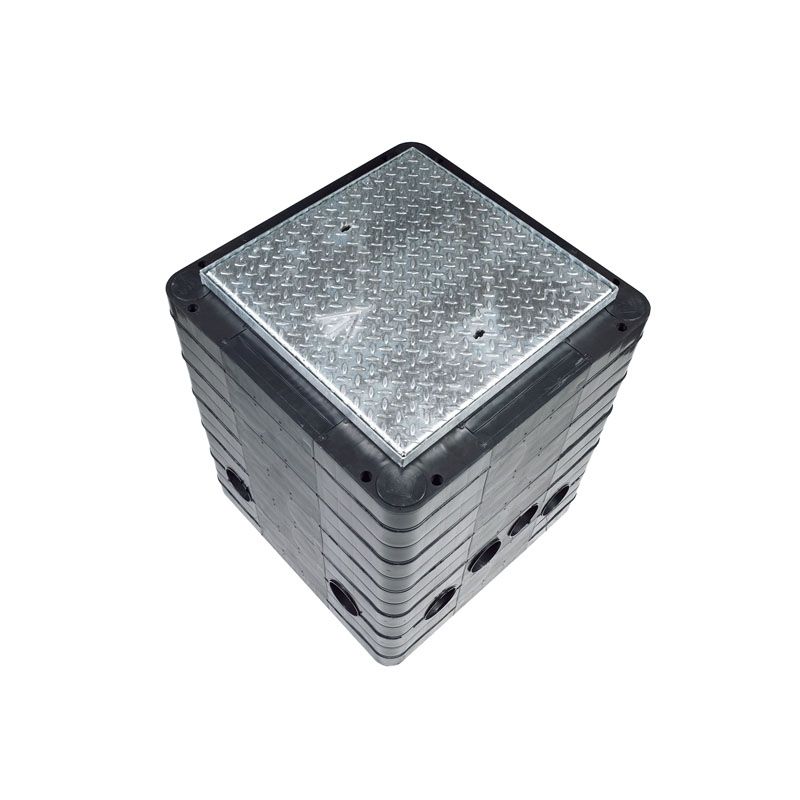

All covers, frames and chambers supplied by Clark-Drain are in accordance with JSP 480 Edition 16. Each security cover is a specially designed single or twin and is rated to either BS EN124 D400 or FACTA AAA. We are able to supply on request the PL350 Abloy Ministry of Defence approved padlock. Our access chambers are designed for use in both footway and carriageway installations where they are used in communication infrastructure to provide access to underground ducting and house cable-jointing equipment.
All chambers and security covers in this brochure are compliant to JSP 480 Edition 16. In accordance with Lloyd’s Register Quality Assurance (LRQA) all modular chambers have been tested to withstand BS EN 124 and B125 D400 loading.
