Home Underground Drainage Underground Drainage Pipe Brett Martin Underground Sampling and Distribution System Chamber - 110mm

Brett Martin Underground Sampling and Distribution System Chamber - 110mm

Code:
BDSC1
Brand:
Brett Martin

Brett Martin's Sampling and Distribution System offers an innovative solution for sub-surface irrigation. Designed to efficiently distribute pre-treated sewage effluent from individual homes connected to septic tanks, this gravity-fed system operates by expertly discharging fl... Read More

View full product details
View questions about this product
£390.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 5-7 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Cheap and rapid service a++++"

calvin Owen
Description Specification Downloads Q&A

Description

Brett Martin's Sampling and Distribution System offers an innovative solution for sub-surface irrigation. Designed to efficiently distribute pre-treated sewage effluent from individual homes connected to septic tanks, this gravity-fed system operates by expertly discharging fluid through percolation pipes to an underground disposal area using either infiltration trenches or beds.

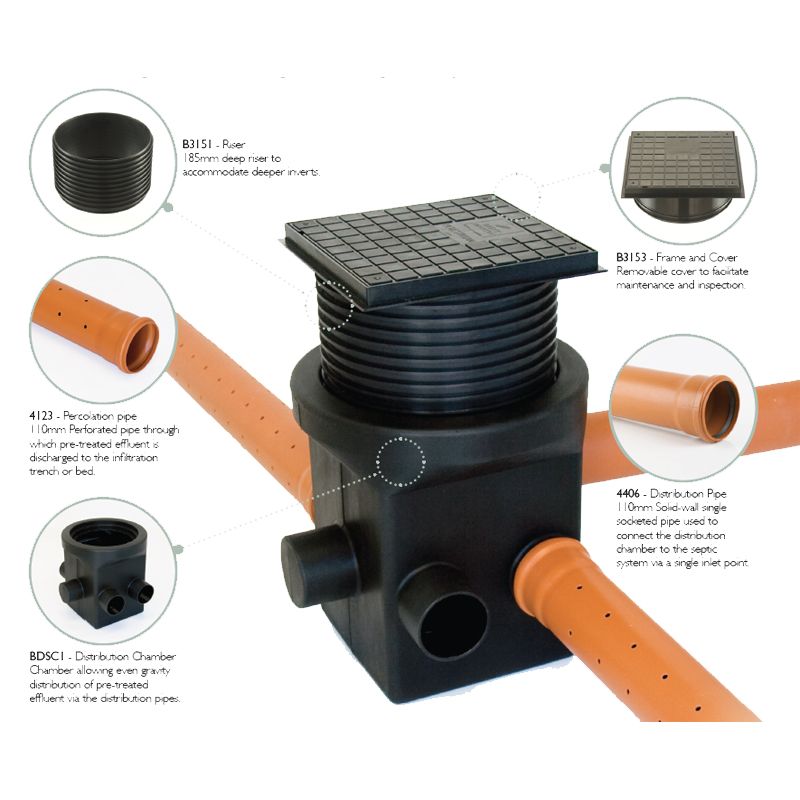

The system's components are available for individual purchase, each fulfilling a crucial role. The Sampling and Distribution Chamber (BDSC1), constructed from resilient polyethylene, assures sturdiness and robustness. The 110mm Single Socketed Percolation Pipe (4406) and 110mm Single Socketed Solid Wall Pipe (4123) are both socket-jointed to meet regulations and ensure flawless connections. The heavy-duty, watertight Riser (B3151) accommodates deeper invert requirements to cater to varying depths, providing a perfect fit. The Frame and Cover (B3153) assembly not only safeguards your system but also minimises the risk of removal, injury or accidents. Plus, the 110mm high frame offers flexibility with its tilt-adjustable spigot.

Features & Benefits: Brett Martin Underground Sampling and Distribution System Chamber - 110mm

  • Gravity-fed sub-surface irrigation solution
  • Distributes pre-treated sewerage effluent from single domestic dwellings with septic tanks
  • Sturdy polyethylene chamber for durability
  • Easy transportation, handling and installation
  • Inlet grommet ensures superior sealing between pipe and chamber
  • Accommodates on-site modifications with five blanked outlets

Transportation, handling and installation are incredibly easy with the Sampling and Distribution System. Additionally, the five blanked outlets enable on-site modifications as necessary, while the secure inlet grommet ensures a superior airtight seal between the pipe and chamber. The percolation pipe exceeds expectations with its 1960mm² perforations per linear metre, while the carefully sized percolations and spacing provide efficient flow, preventing unwanted granular fill from entering the pipes.

Details

Material Plastic Product Type Sample Chamber

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Could you advise the invert levels (inlet and outlet) when fitted with lid (B3153) so I can work out what risers I need?

Answer:

The inlet is 175mm and the outlet is 275mm.
