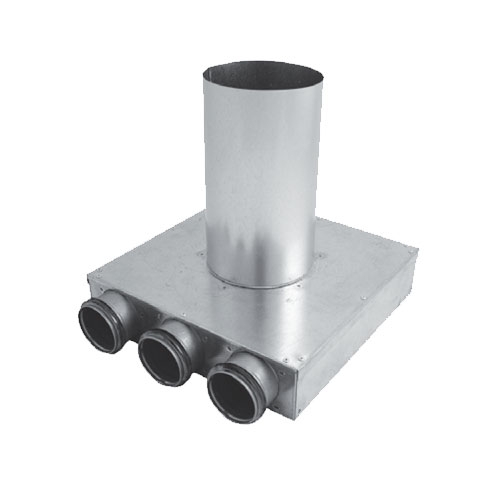

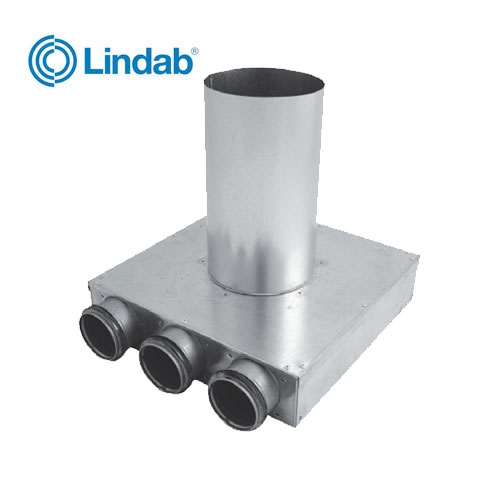

Ventilation Plenum Box 125mm x 63mm with 3 Ports - Lindab Indomo PLVCU

Code:
495336
Brand:
Free UK Delivery

Dimensions Main Diameter : 125mm Port Diameter : 63mm Length : 297mm Width : 298mm Height : 70mm Spigot Height : 225mm Description The plenum box is suitable for supply and exhaust air. It is intended to accommodate an air valve and is designed for ceiling installa... Read More

Create a wishlist

"Prompt handling of Lindab order."

Curtis

Description

Dimensions
Main Diameter : 125mm
Port Diameter : 63mm
Length : 297mm
Width : 298mm
Height : 70mm
Spigot Height : 225mm


Description

The plenum box is suitable for supply and exhaust air. It is intended to accommodate an air valve and is designed for ceiling installation and can be cut to length to suit void depth. All types have Ø 63 mm spigots with Lindab Safe seals for connection of semiflexible LFPEduct. Each Ø 63 connection is equipped with Smart lock to secure the semiflexible LFPEduct.

Two turnable anchor plates, placed on the bottom of the manifold, can be used for mounting. Fulfills the requirements for air tightness class D. The shown pressure drop is for the box alone, the pressure drop for any fitted air valve has to be added.

Details

Diameter 125mm Ports 3 Ports Port Diameter 63mm
