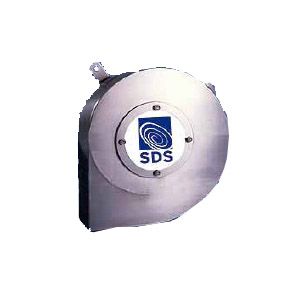

DISCON-27mm VR4 Radial type Vortex Flow Control Unit - 150mm Outlet

Name: DISCON-27mm VR4 Radial type Vortex Flow Control Unit - 150mm Outlet
Brand: Drainage Superstore
SKU: VOR
Price: 812.60 GBP
Availability: Discontinued

Code:

VOR

Brand:

Drainage Superstore

This item is out of stock and not available to purchase.

View alternative products

Description The rate at which water is allowed to flow can be controlled by a Vortex Flow Control (VFC). SDS supplies a range of VFCs and will select the model that meets the specific requirements of each installation. The SDS supplied VFC is a self-activating flow control... Read More

View full product details

View questions about this product

Create a wishlist

E Jackson

Description

Description
The rate at which water is allowed to flow can be controlled by a Vortex Flow Control (VFC). SDS supplies a range of VFCs and will select the model that meets the specific requirements of each installation.

The SDS supplied VFC is a self-activating flow control device which induces a vortex motion in the flow to control the rate at which water is allowed to enter downstream drainage systems. The energy inherent in the water flow is harnessed to generate the vortex and hence has no need of external energy supplies. The flow control itself has no moving parts. The VFC has a superior hydraulic performance when compared to conventional flow controls such as orifice plates, throttle pipes and penstocks. With outlet diameters up to 400% larger than conventional flow control devices, the risk of blockage is minimised.

VFCs have a unique head/flow characteristic with a distinctive 'S' shaped curve with high flush and kickback flow points; this characteristic can reduce storage volume requirements, thereby lowering project costs.

Our devices are typically made using 10 gauge Grade 304 stainless steel and to all the relevant British Standards. Stainless steel does not corrode and is highly resistant to abrasion, hence the life expectancy of each unit is likely to exceed that of the system into which it is installed. Following installation there is little need for maintenance.

Units come equipped with a drain down/by-pass mechanism which is remotely operated from ground level. In the unlikely event of a blockage occurring in the inlet or outlet of the VFC, the mechanism allows drain down of the system without the need for expensive over pumping or bypass penstocks and pipework; this is unlike other makes of VFC, which can only bypass a blockage in the inlet.
