Wrekin Highways Cast Iron Manhole Cover 100mm - D400

Code:
WREKIN-DMT0D4-KH
Brand:
Wrekin

This Highways range Cast Iron Access Cover by Wrekin is a Group 4 D400 loading class manhole cover used in carriageway environments. A strong, durable cast iron material, the patented frame design has enlarged frame corners to ensure the load is dissipated. Its design also enc... Read More

View full product details
View questions about this product
from
£155.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Configure & Buy
Delivery from: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Nov 26th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Good product"

Mr Chris Pym
Description Specification Downloads Q&A Reviews Product options

Description

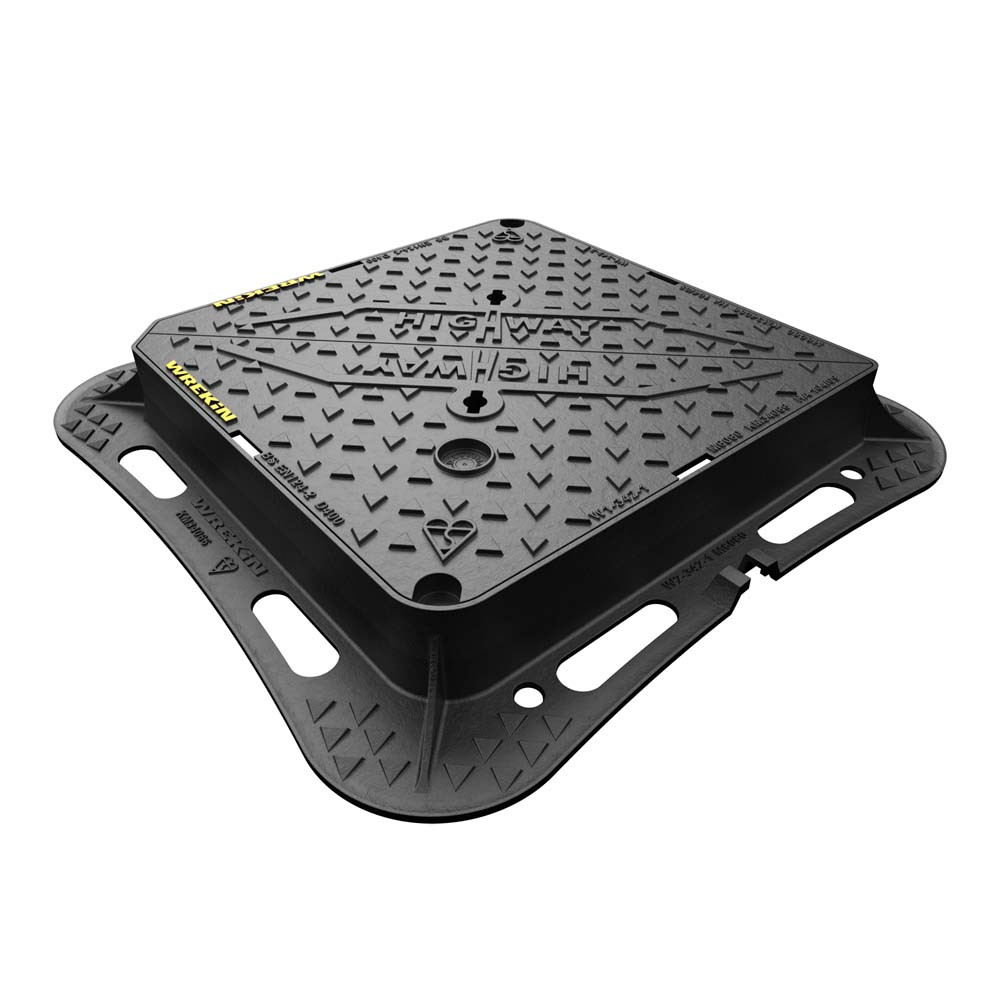

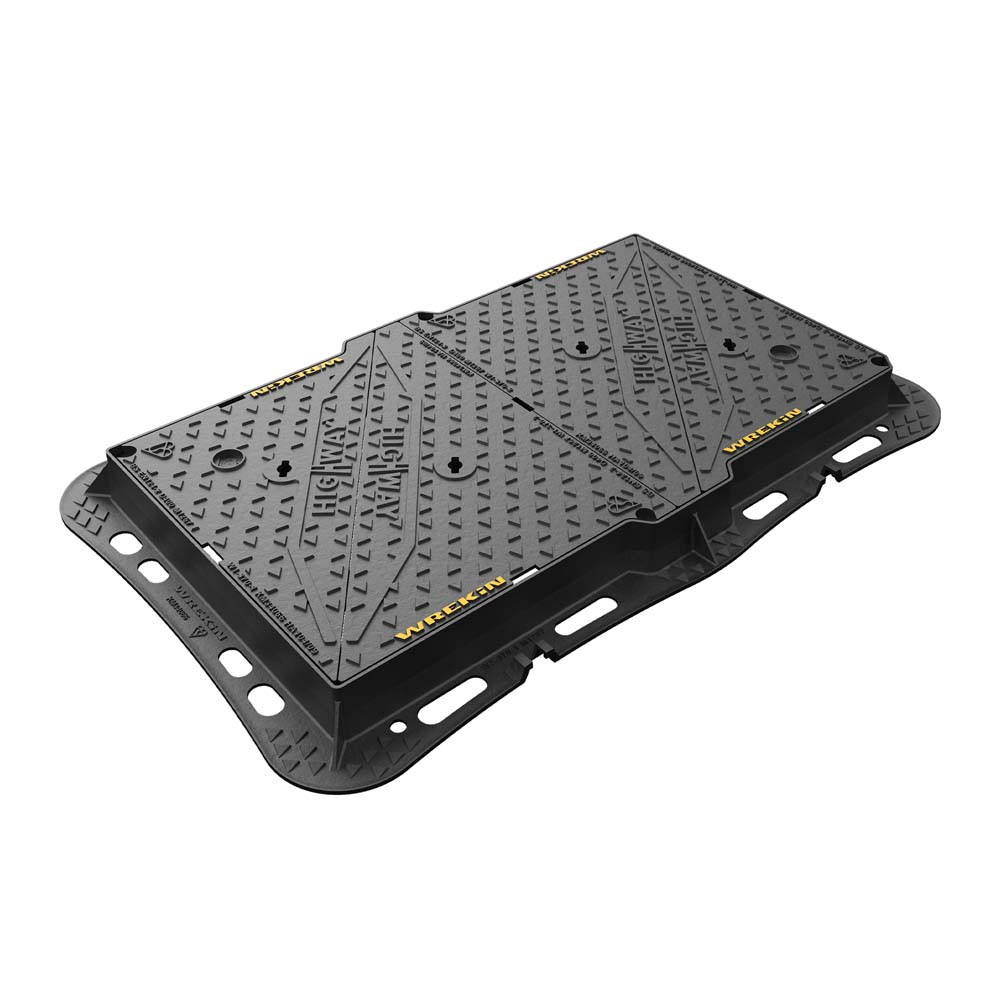

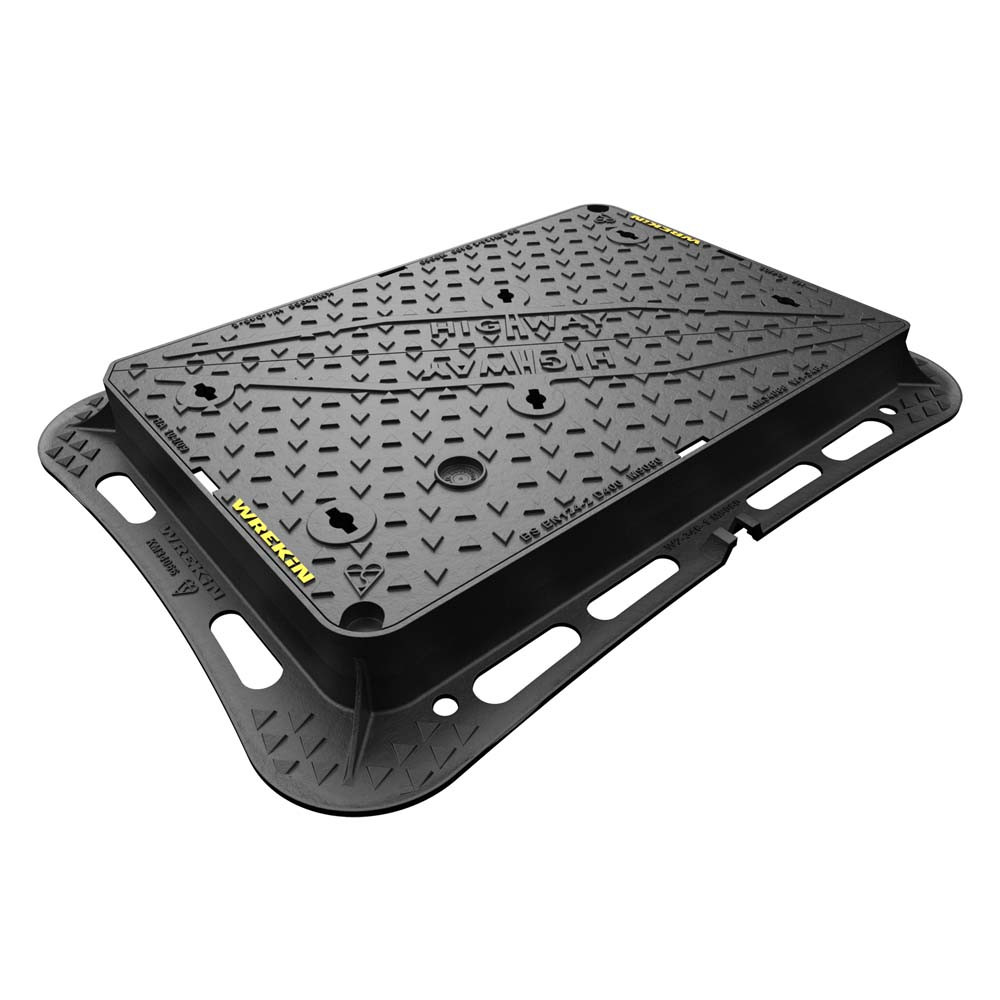

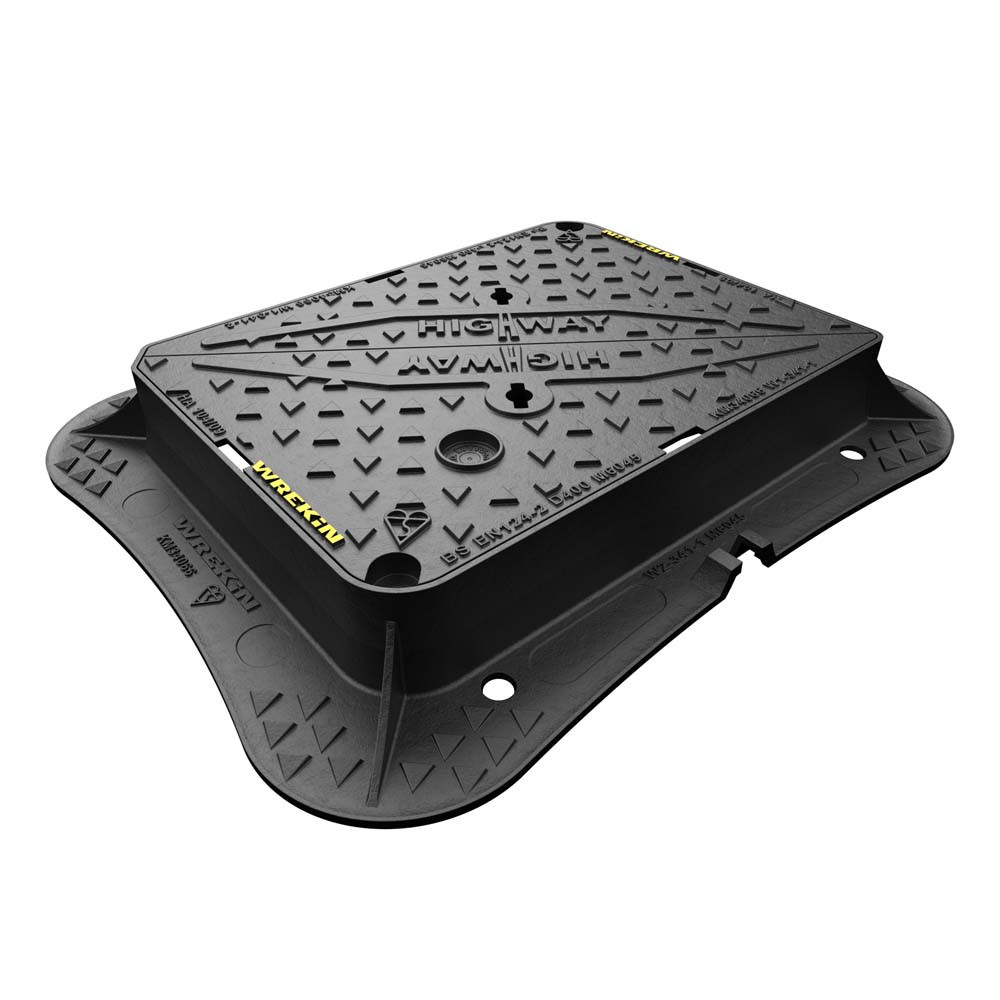

This Highways range Cast Iron Access Cover by Wrekin is a Group 4 D400 loading class manhole cover used in carriageway environments. A strong, durable cast iron material, the patented frame design has enlarged frame corners to ensure the load is dissipated. Its design also encompasses mechanical lifting points to make removal of the cover easier if needed and a three-point suspension for non-rock stability.

The cover is also indexed to ensure correct fitting and is available with various internal dimensions. To assure you of its quality and safe and robust performance, this manhole cover also complies with BS EN 124 standard, is third-party certified by BSI and complies with UK Highways Authority specification HA 104/09. The patented safety keyway prevents accidental disengagement during lifting operations and can be used with standard D400 lifting keys.

Features & Benefits: Wrekin Highways Cast Iron Manhole Cover 100mm - D400

  • Suitable for Group 4 D400 loading class areas, withstands 40-tonne test loads
  • Strong and durable cast iron material
  • Patented enlarged frame corners to dissipate the load and mechanical lifting points for removal of cover in maintenance or replacement
  • Three-point suspension for non-rock stability
  • Patented safety keyway prevents accidental disengagement during lifting, compatible with standard D400 lifting keys

Please note:

  • Locked, Badged 'SW'/'FW', Ventilation holes, Sealing plate, Safety grill, and Anti-slip coating (60+ PSRV) options are also available.

Dimensions

Length 450mm
600mm
750mm
900mm
1120mm Depth 100mm Width 450mm
600mm
675mm
750mm
900mm

Details

Material Cast Iron
Ductile Iron Product Type Manhole Cover Weight Class D400 Profile Solid Top
Internal Dimensions 1120mm x 675mm
450mm x 450mm
600mm x 450mm
600mm x 600mm
750mm x 600mm
750mm x 750mm
900mm x 600mm
900mm x 900mm External Dimensions 1070mm x 1070mm
1115mm x 815mm
1460mm x 895mm
555mm x 555mm
740mm x 570mm
810mm x 810mm
960mm x 960mm
964mm x 814mm Use Location High Traffic
Highways
Main Roads
Public Car Parks Load-Bearing Strength 40 Tonnes

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.

Reviews
