Graf One2Clean Plus Sewage Treatment Plant

Q: What is the difference in the weight class

T he difference between the weight class is that A15 is suitable for pedestrians to walk over with a weight rating of 1.5 tonnes. However, B125 is suitable for smaller vehicles with weight durability of 12.5 tonnes.

Code:

PARENT-ONE2CLEAN-PLUS

Brand:

Graf

The One2Clean Plus sewage treatment plant from Graf will treat the water, so that it is clean enough to be discharged into a water course (depending on how frequently it is being used and the manufacturer’s guidelines). However, One2Clean Plus sewage treatment plants do ... Read More

View full product details

View questions about this product

Weight Class

Population

from

£3,120.00 Incl. VAT

Earn points

Delivery from: 10-15 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

paul preece

Description

The water discharged from the One2Clean Plus packaged treatment plant must meet the relevant British Standard which is BS EN 12566 for small sewage treatment plants and BS 6297:2007 for drainage fields.

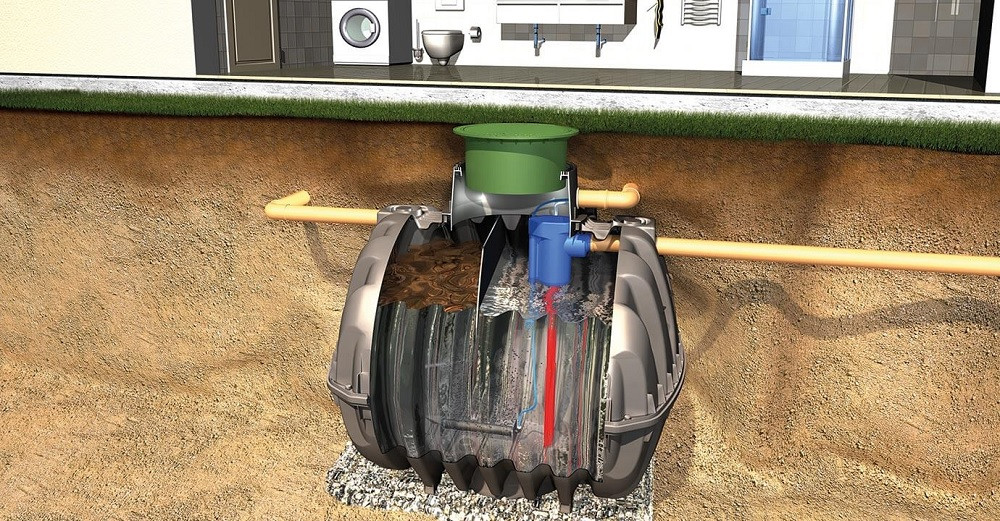

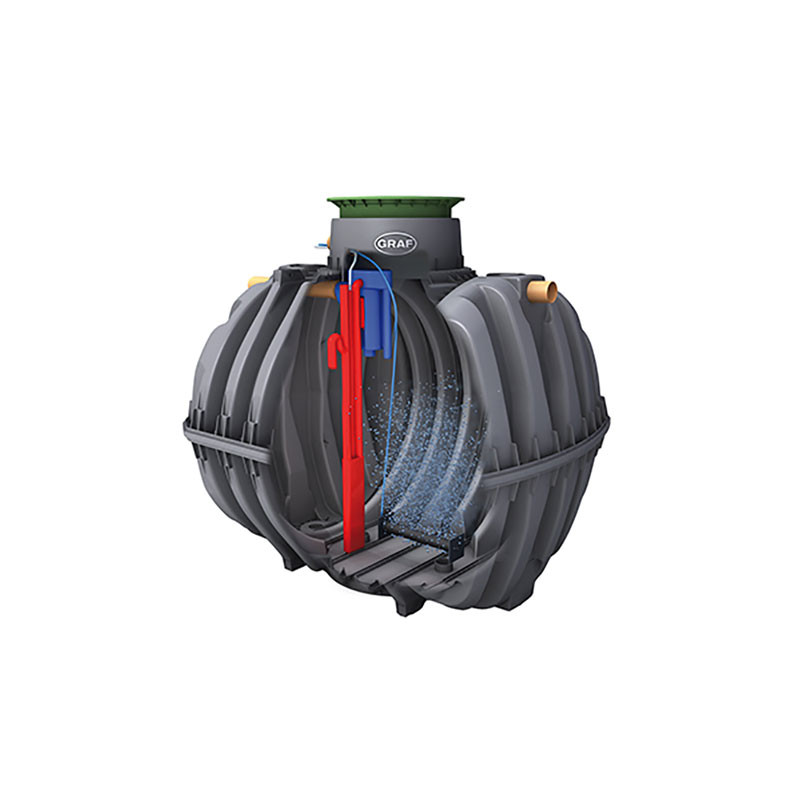

Graf One2Clean Plus Sewage Treatment Plant Process

Untreated waste enters the One2Clean tank via the inlet on the side.
Wastewater then falls directly into the biological zone where the treatment takes place, allowing micro-organisms to start the breakdown process.
Compressed air is used initially for aeration through the diffuser, intermittent to achieve the best treatment performance.
Aeration is then stopped allowing the activated waste to sink to the bottom.
Compressed air is sent through the One2Clean tank once again, extracting the cleaned water near the surface.
This water passes through a sampling point before leaving the plant, where samples can be taken to confirm the quality of effluent.
The above process occurs twice per day, each lasting 12 hours.
The sludge which builds up at the bottom of the tank must also be emptied in line with the manufacturer’s instructions
Numerous companiescan dispose of the waste, these must be a registered waste carrier

Features & Benefits

One tank with just one chamber
Less energy consumption
No mechanical elements in the wastewater
No pumps in the wastewater
No electrical components in the wastewater
Incredibly low volume of sewage sludge
Odourless, clear treated water for extraction
State-of-the-art manufacturing for maximum stability
100% watertight and corrosion-resistant
Can be installed in groundwater
Simple maintenance via an integrated, self-cleaning sampling container

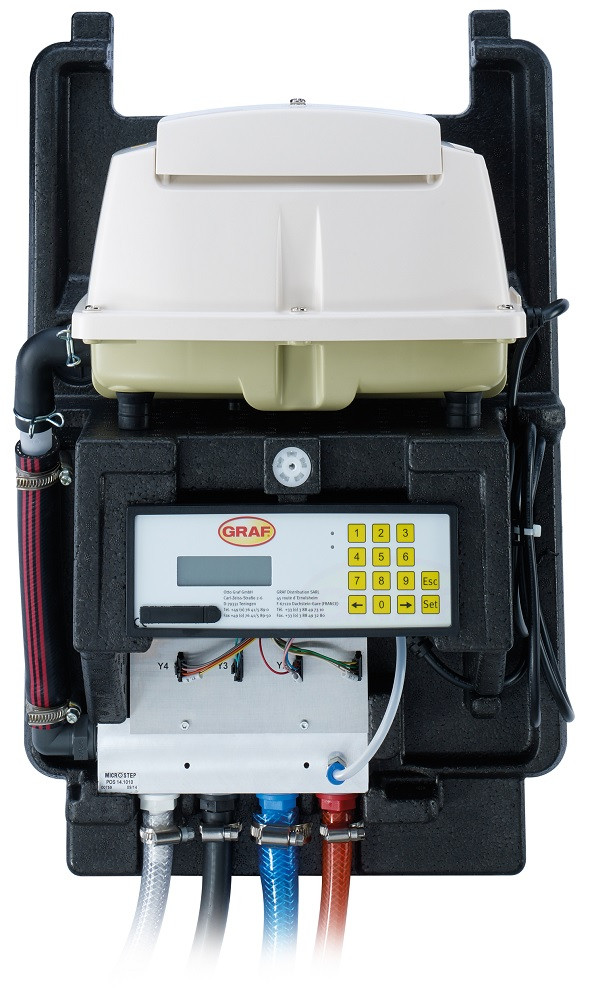

More advanced control panel than the standard One2Clean
Control panel allows additional plug in retro fitting of add on systems

Specification

Details

Product Type Sewage Treatment Plant Weight Class B125
A15 Capacity 1-6 Person
13-24 Person
7-12 Person Population 5 Person
7 Person
9 Person
10 Person
14 Person
18 Person

Domestic Or Commercial Commercial
Domestic Gravity Or Pumped Gravity Install Type Standard

Downloads

Technical Information

Questions & Answers

Question:

What is the difference in the weight class

Answer:

The difference between the weight class is that A15 is suitable for pedestrians to walk over with a weight rating of 1.5 tonnes. However, B125 is suitable for smaller vehicles with weight durability of 12.5 tonnes.

Question:

Can the power be switched off when the residence is unoccupied?

Answer:

You can, however it is not recommended on a regular basis. When empty or turned off, the bacteria will die off and will need to be restarted once turned back on.

Question:

What size electric supply does this need

Answer:

You would need a Single phase - 220-240v.

Question:

Does this ship as kit of parts rather than fully assembled (good if it is a kit) and does it have the ability to accommodate reduced flow in the case use in a holiday home complex.

Answer:

This gets delivered fully assembled ready to go into the ground. It can fluctuate the capacity of effluent as needed
